M³Sense-Cloud
High-Speed, Multi-Channel Precision for Next-Generation Equipment Monitoring.
Usability
Speed
Data
Monitoring
・Real time processing ・Multi channel signal acquisition・Intuitive interface
・High frequency signal capture ・ Fast data sampling ・ Low latency display
・Local and cloud storage options ・ Centralized data management ・ Easy data access
・Real time signal visualization ・ Flexible input ranges ・ High precision measurement

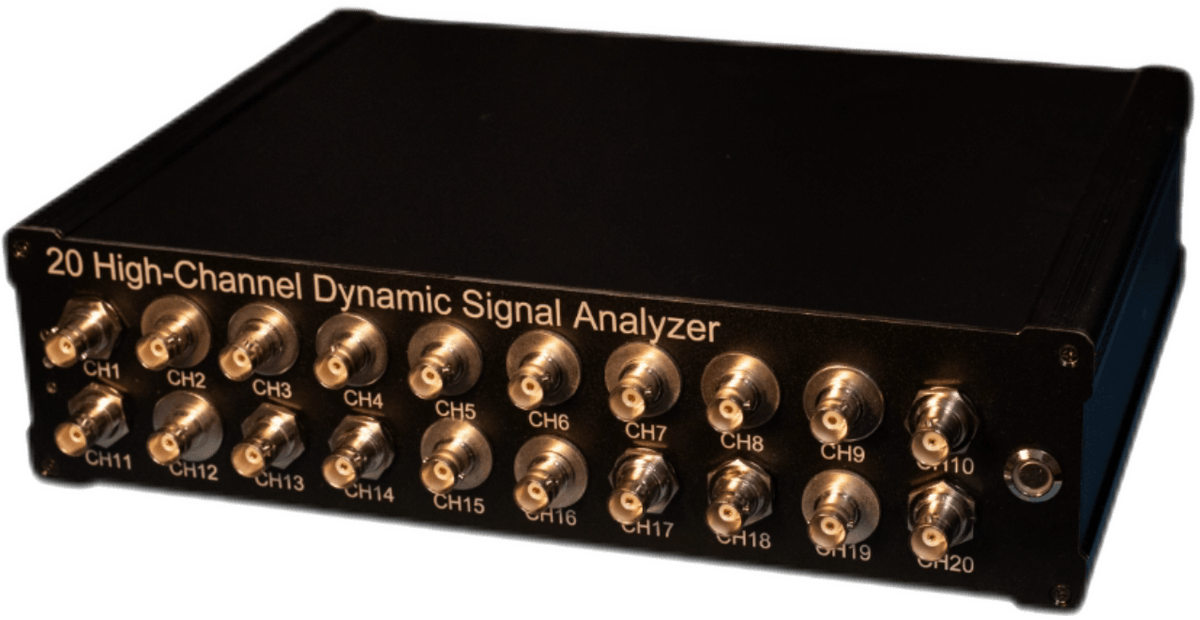

Product Overview
Intelligent Data Acquisition and Management Platform for Critical Electrical Systems
This platform is a data acquisition and management solution for electrical equipment in the renewable energy, power and transportation sectors. It is designed to provide precise and stable operational data for critical components. With multi channel high precision acquisition capability, it can simultaneously capture multiple analog signals, meeting diverse requirements for sampling rates and resolutions.
The platform supports both local and cloud storage modes. Local storage ensures secure data retention in offline environments, while cloud storage offers data classification, search and management functions, enabling centralized operation, maintenance and backup. In either mode, users can easily access and retrieve the information they need.
A built in real time data display function presents collected signals in curves or charts, allowing users to quickly assess equipment status and improve monitoring efficiency. With its modular architecture and standardized interfaces, the platform adapts flexibly to various device types, supports expansion and upgrades, and ensures easy deployment with low maintenance costs.
Well suited for long term, stable monitoring applications, the platform provides engineers, technicians and operations teams with a reliable data foundation that helps improve the precision and efficiency of equipment management.
Modular Real-Time Monitoring Platform for Reliable Equipment Managemen
Technical Specifications
General
Low-Speed Channels
Low-Speed Channels
Power
Parameter
Number of Channels
Sampling Rate
Synchronization
Sampling Depth
Operating Temperature
Data Transmission
Number of Channels
Resolution
Dynamic Range / Noise
Accuracy (DC)
Crosstalk Immunity
Input Range
Number of Channels
Resolution
Dynamic Range / Noise
Accuracy (DC)
Crosstalk Immunity
Input Range
Supply Voltage & Current
Maximum Power Consumption
Specification
Up to 20 analog channels
4 × 50 MS/s and 16 × 200 kS/s
Simultaneous
Up to 50 k
0 °C to 60 °C
Ethernet (TCP)
4 channels
12-bit
SNR = 70 dB (to Nyquist),
SFDR = 80.5 dBc (to Nyquist)
3mV
> 85 dB
Differential +-5V
16 channels
16-bit
SNR = 95.5 dB, THD = –107 dB,
±0.5 LSB INL, ±0.5 LSB DNL
0.15mV
> 85 dB
True bipolar: ±5 V
5 V, 2 A
15 W
